grout lines on the wall
a seamless surface, with nowhere for dirt and mould to collect
Bathroom Design · launch
Grout-free bathroom panels
Large-format panels on a waterproof HDF core, joined with the STRAMA CLICK system. The wall looks like a single surface, with no grout and no need to remove old tiles. We produce them ourselves in Poland.
In brief
In brief
panel format in mm
a single panel covers 1.68 m² of wall
panel thickness
waterproof HDF core
designs to order
5 finishes in the standard range
Bathroom Design
A grout-free bathroom, panel by panel
Bathroom Design panels with the STRAMA CLICK jointing system give bathroom walls an attractive, practical finish. The grout-free surface creates a seamless look, while click installation speeds up finishing work.
The waterproof decorative layer resists scratching and abrasion, and is easy to clean and maintain day to day. A solution for new bathrooms and refurbishments, including modular and timber-frame houses.

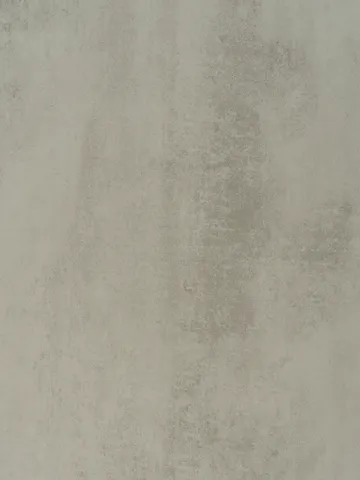

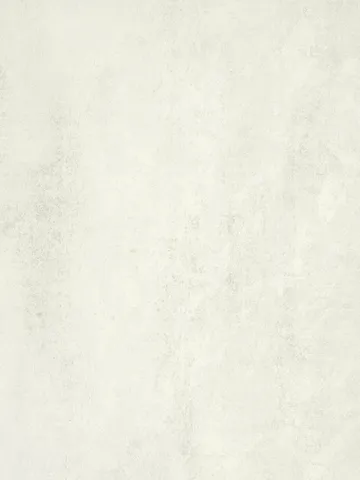

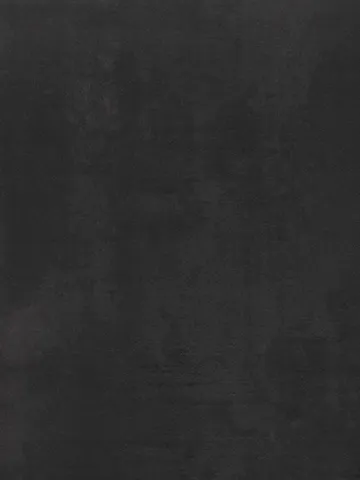

Finishes
Five finishes in the standard range.
Switch the finish and see it in a bathroom, close up and on a 3D model of the panel. Confirm the colour on a physical sample.

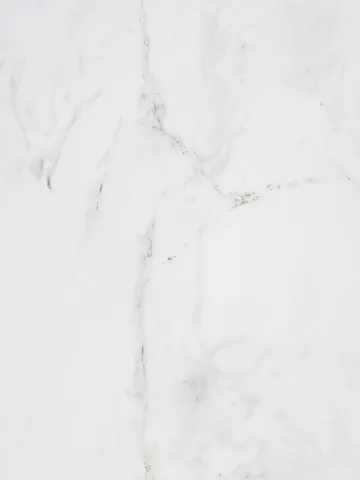

Finishes · 5
Product data
Technical specifications
Data from the STRAMA Bathroom Design product leaflet.
- Index
- SP-BD
- Substrate material
- Waterproof HDF
- Face layer
- waterproof veneer, resistant to scratching and abrasion
- Jointing system
- STRAMA CLICK
- Panel length
- 2800 mm
- Panel / covering width
- 614 mm / 600 mm
- Panel thickness
- 10 mm
- Panel weight
- 8.5 kg/m²
- 1 pallet
- 50 panels
- 1 pallet (size / weight)
- 2820 × 650 × 680 mm / 800 kg
- Finishes
- 5 in the standard range, over 100 designs on special order
The 2800 mm length is the standard dimension. We confirm other lengths and finish availability at the order stage.
Accessories
Two aluminium profiles finish the wall
Anodised aluminium in a natural colour. You can rotate the 3D model. One corner profile handles both internal and external corners, the other profile starts and ends the wall.
The model loads once it scrolls into view
Starter / end profile Anodised aluminium
Installation with accessories
Where each profile works
The profiles have pockets for the panel edge. The panel slides into the profile, so the edges are not left exposed.

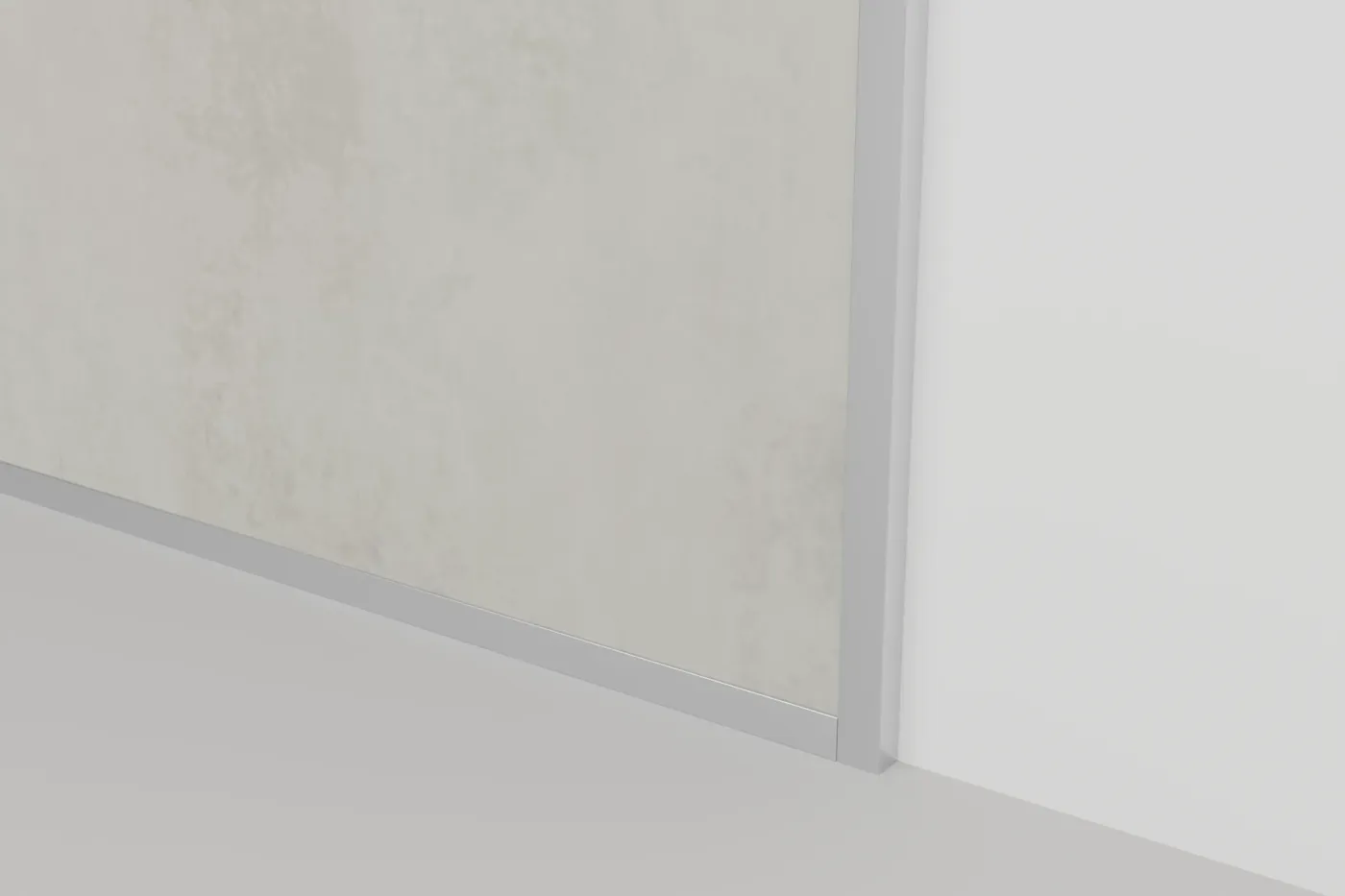

Starting and ending the wall
The SP-BD-PS280 profile guides the first row at the floor and conceals the side of the last panel.

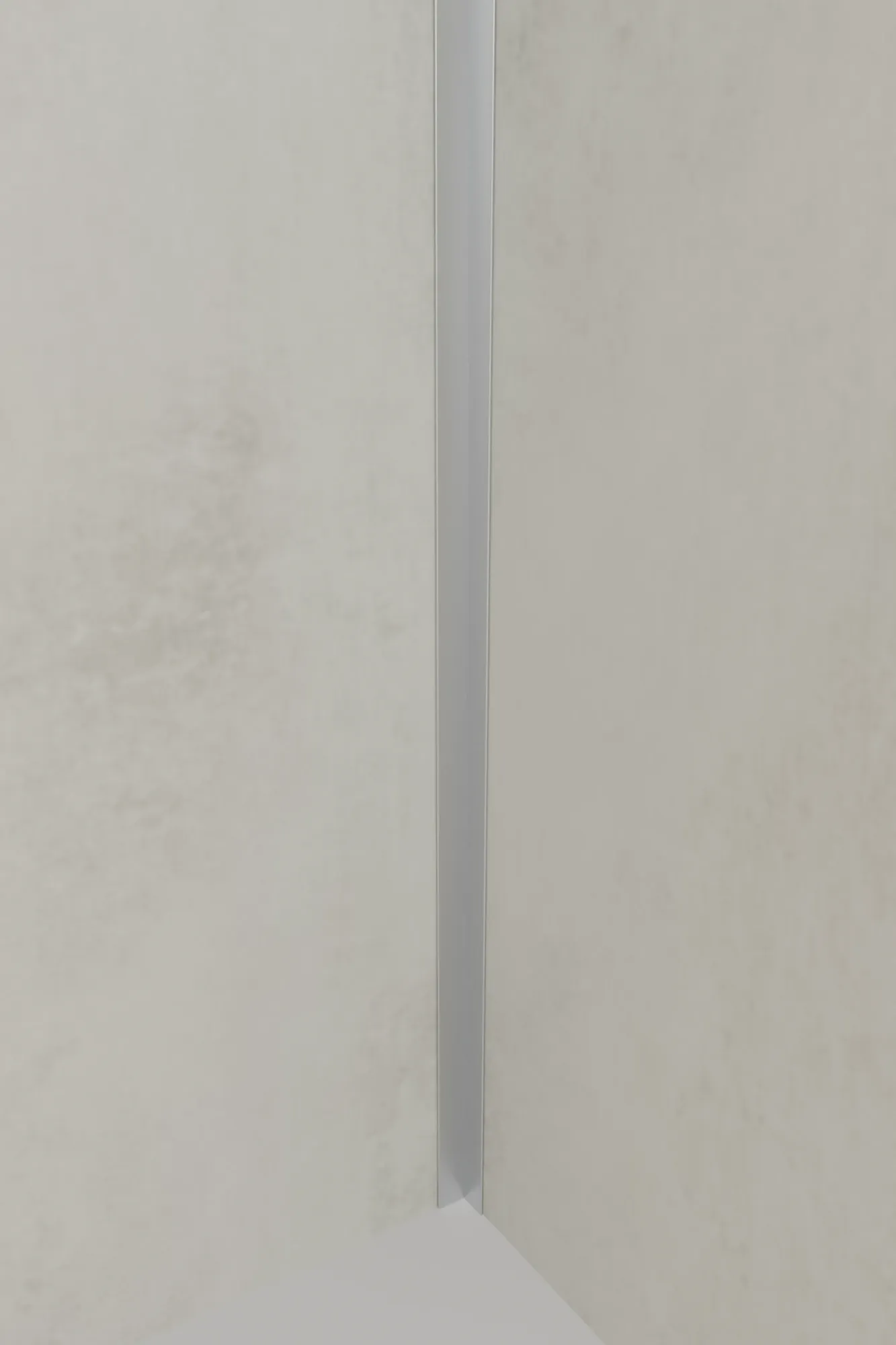

Internal corner
The SP-BD-CU280 corner takes the panel edges from both walls. No mitre cutting required.

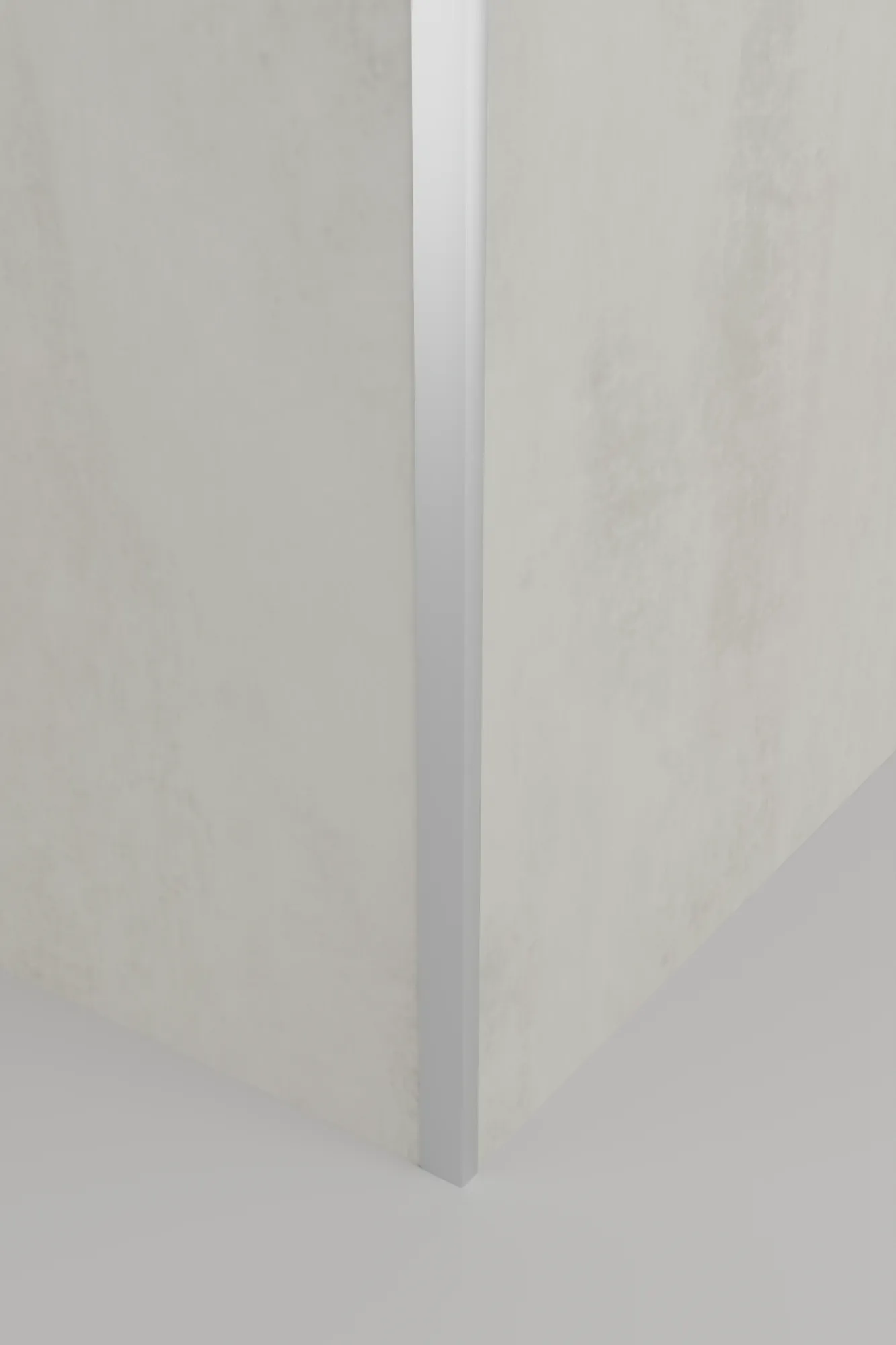

External corner
The same profile turned outwards protects the panel edges on a projecting corner.
Made to order
Over 100 designs on special order
Five finishes make up the standard range. We also make Bathroom Design panels in a wide choice of other veneers: stone, concrete, marble, wood and solid colours. On special order we offer over 100 designs.
We produce to order in our own facility, so a finish outside the standard range does not mean a long wait. Tell us the effect you are after, and we will match a design and send a sample.

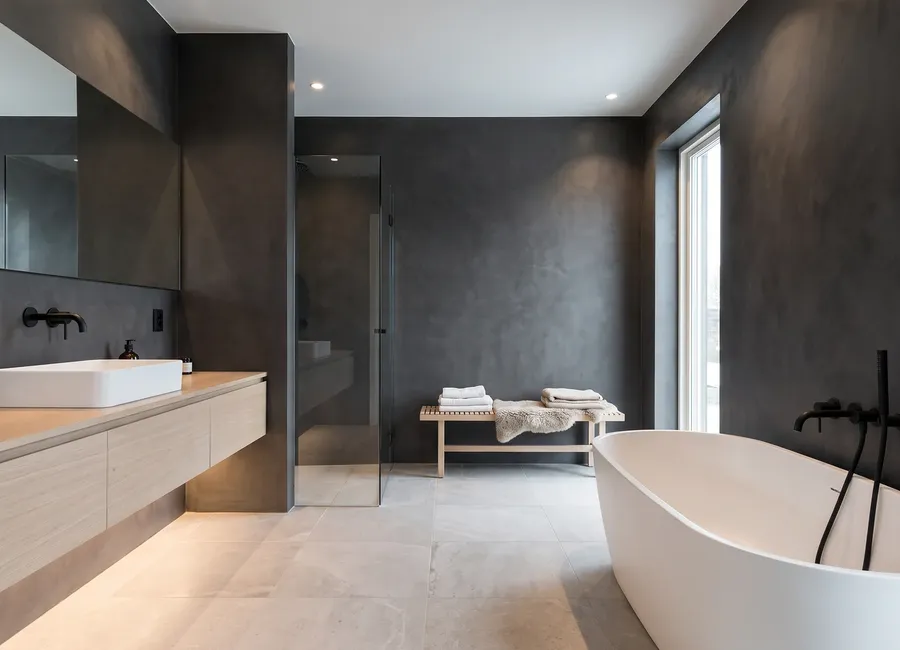

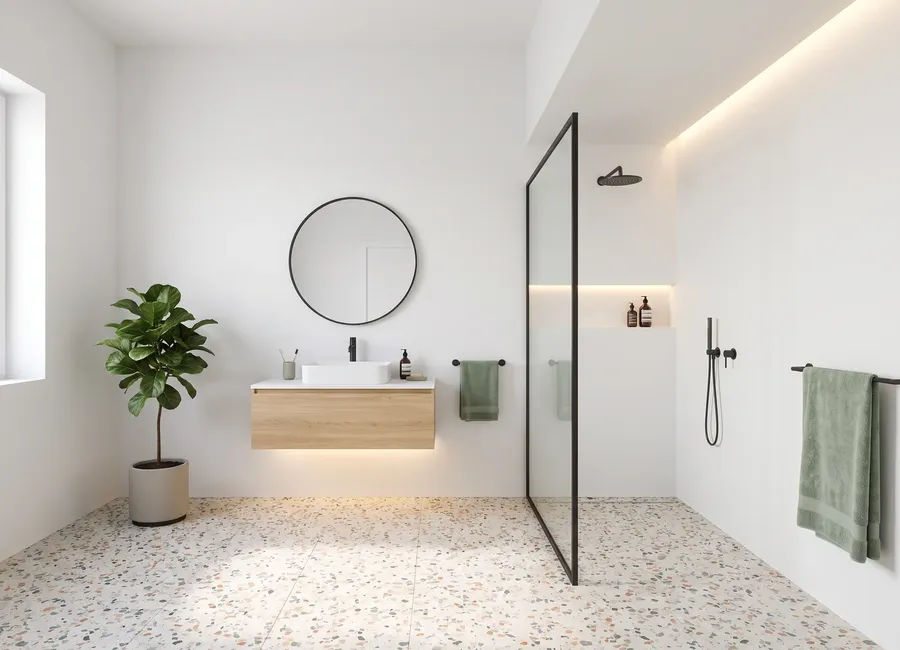

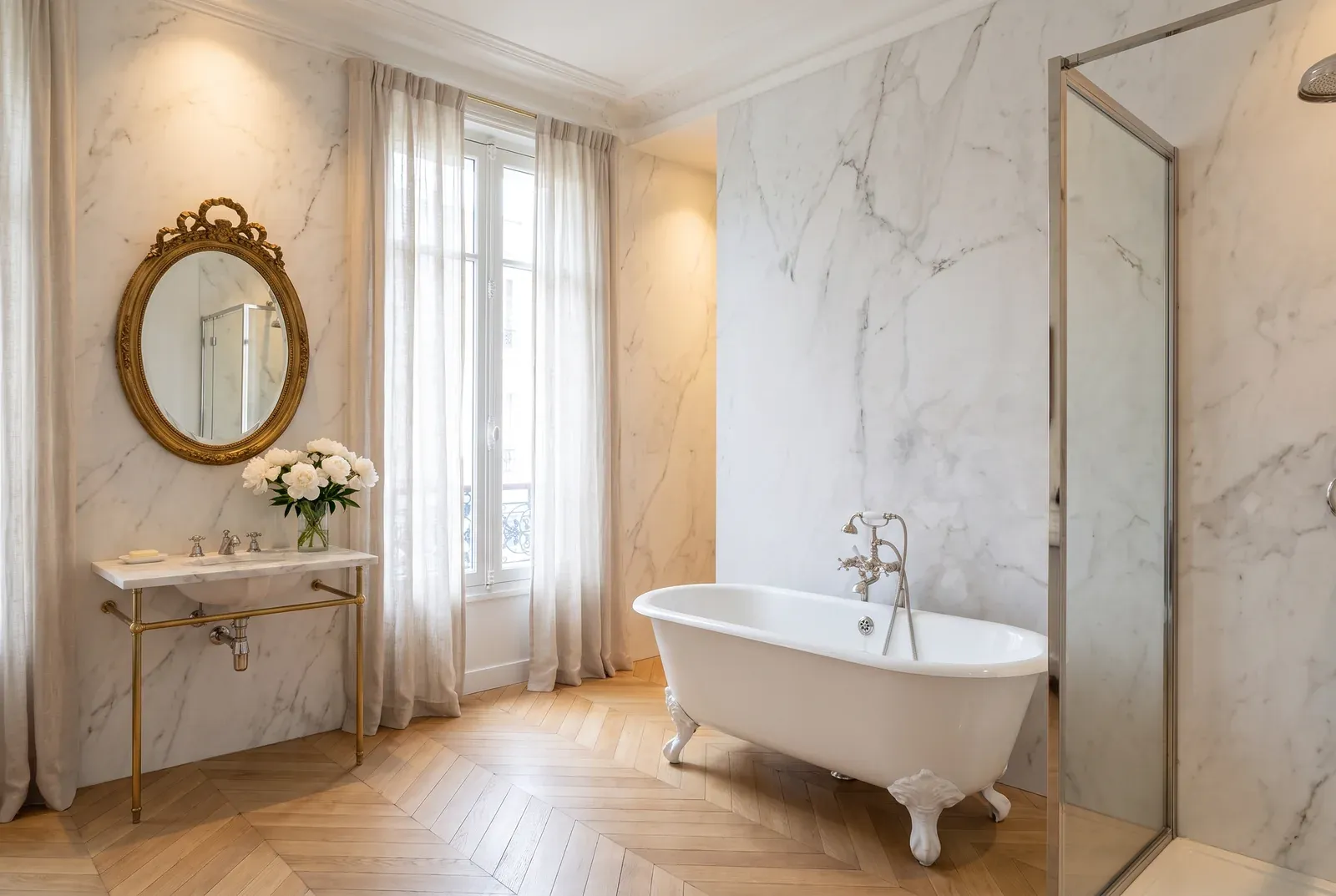

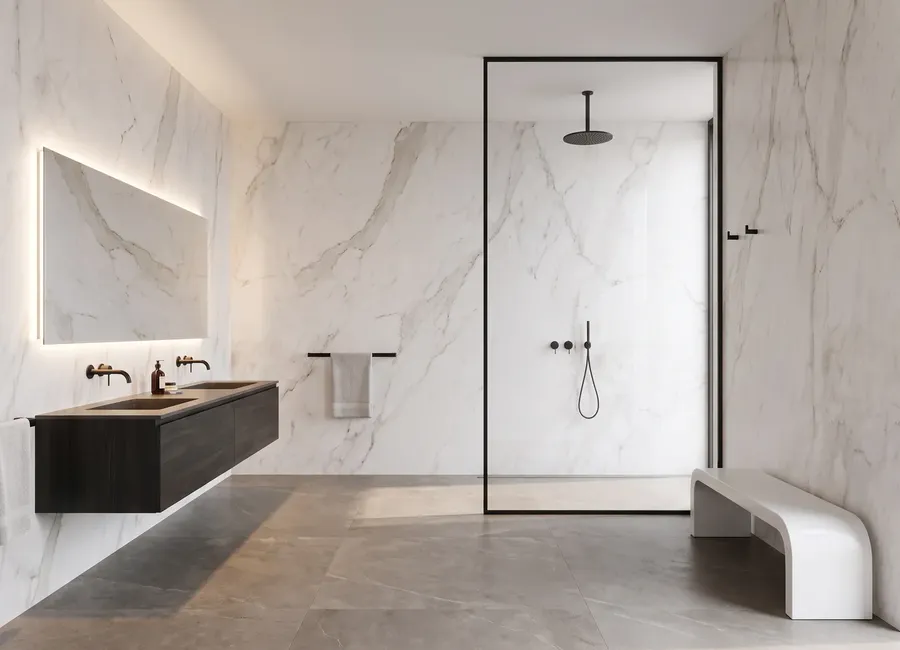

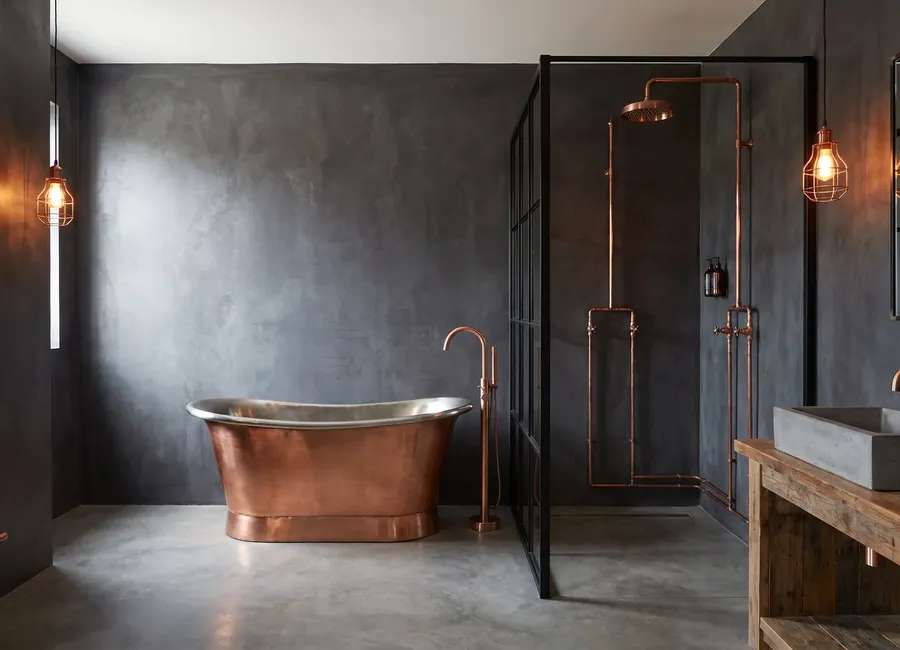

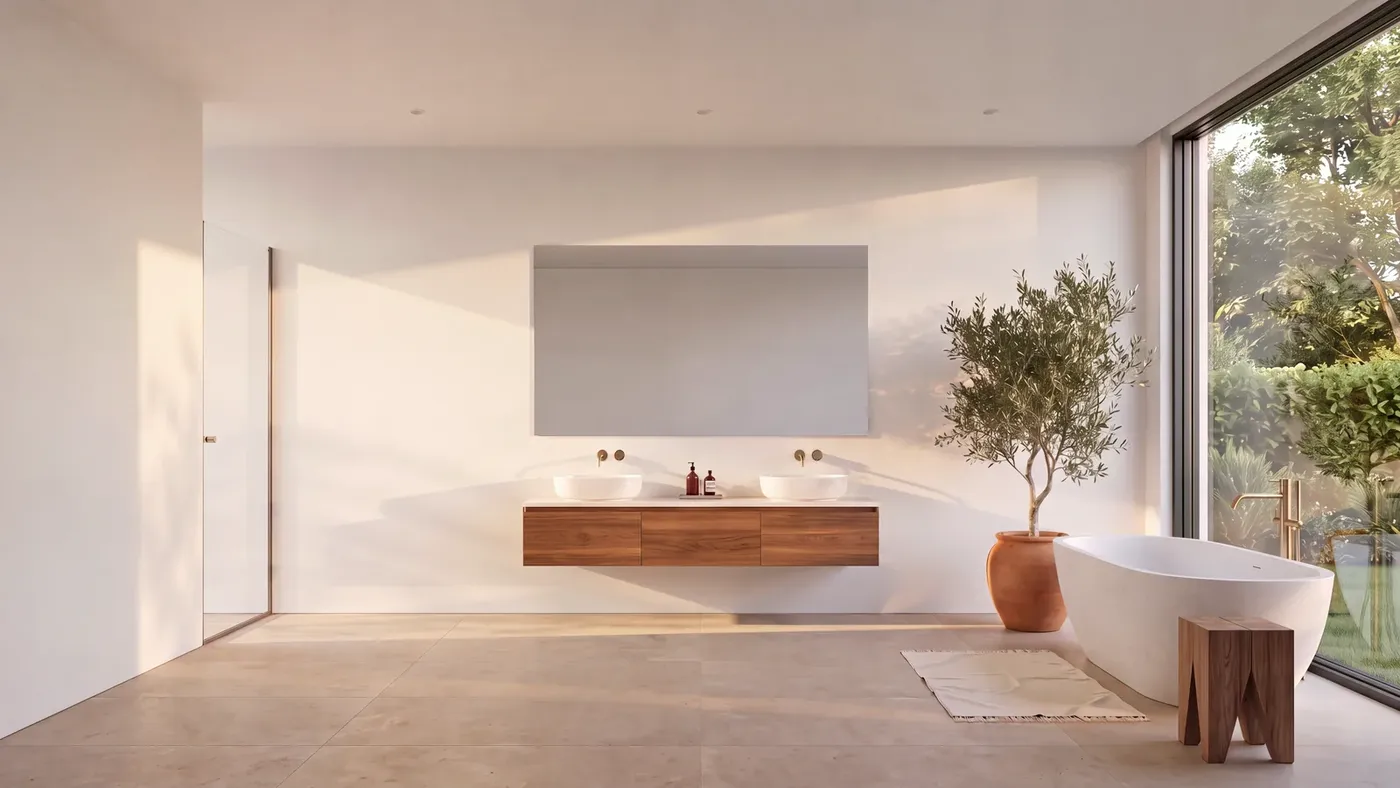

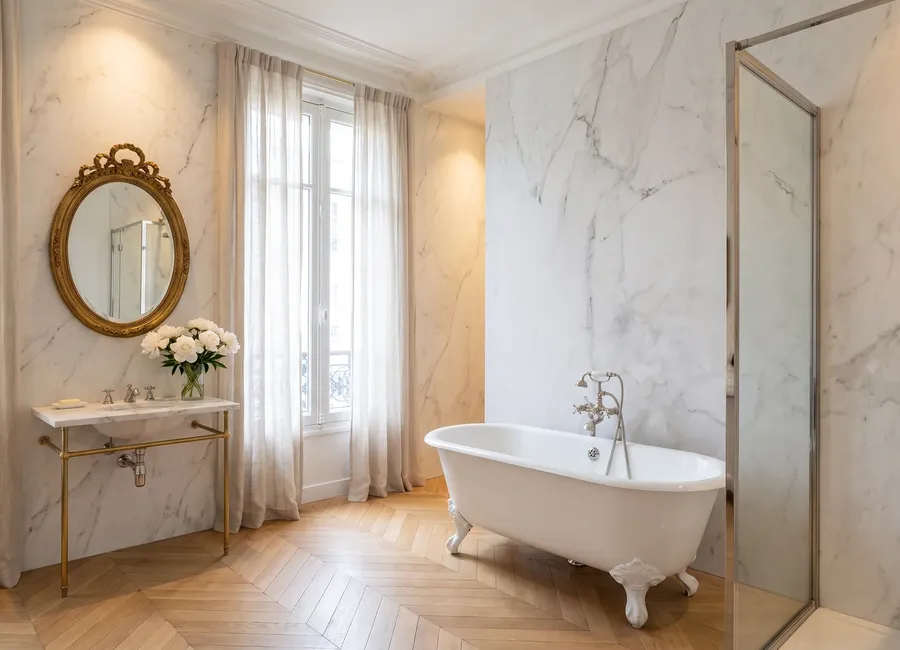

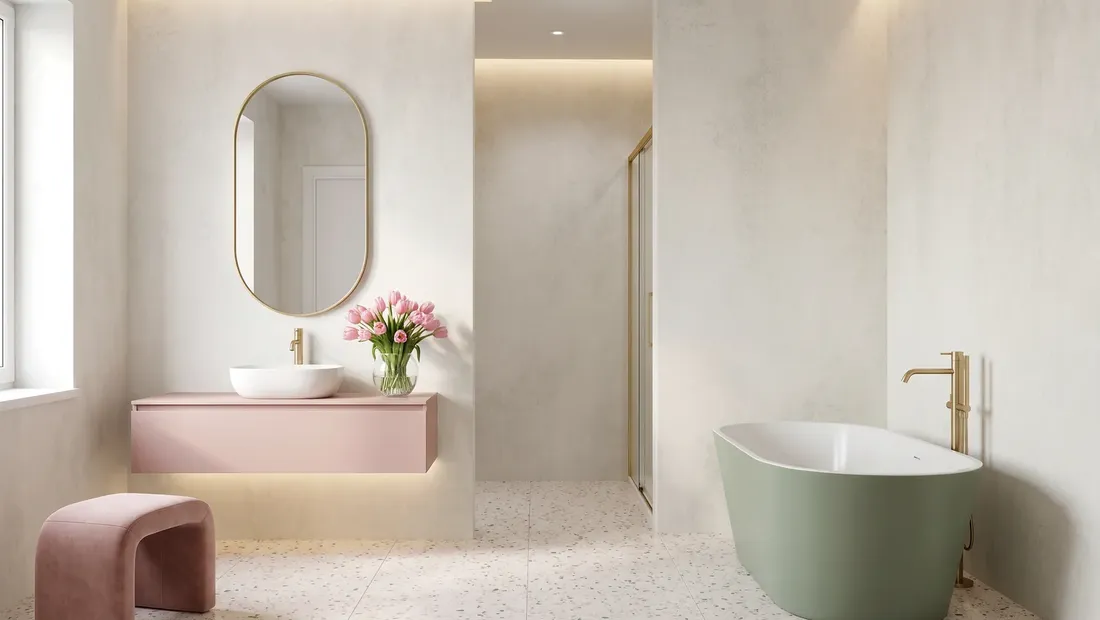

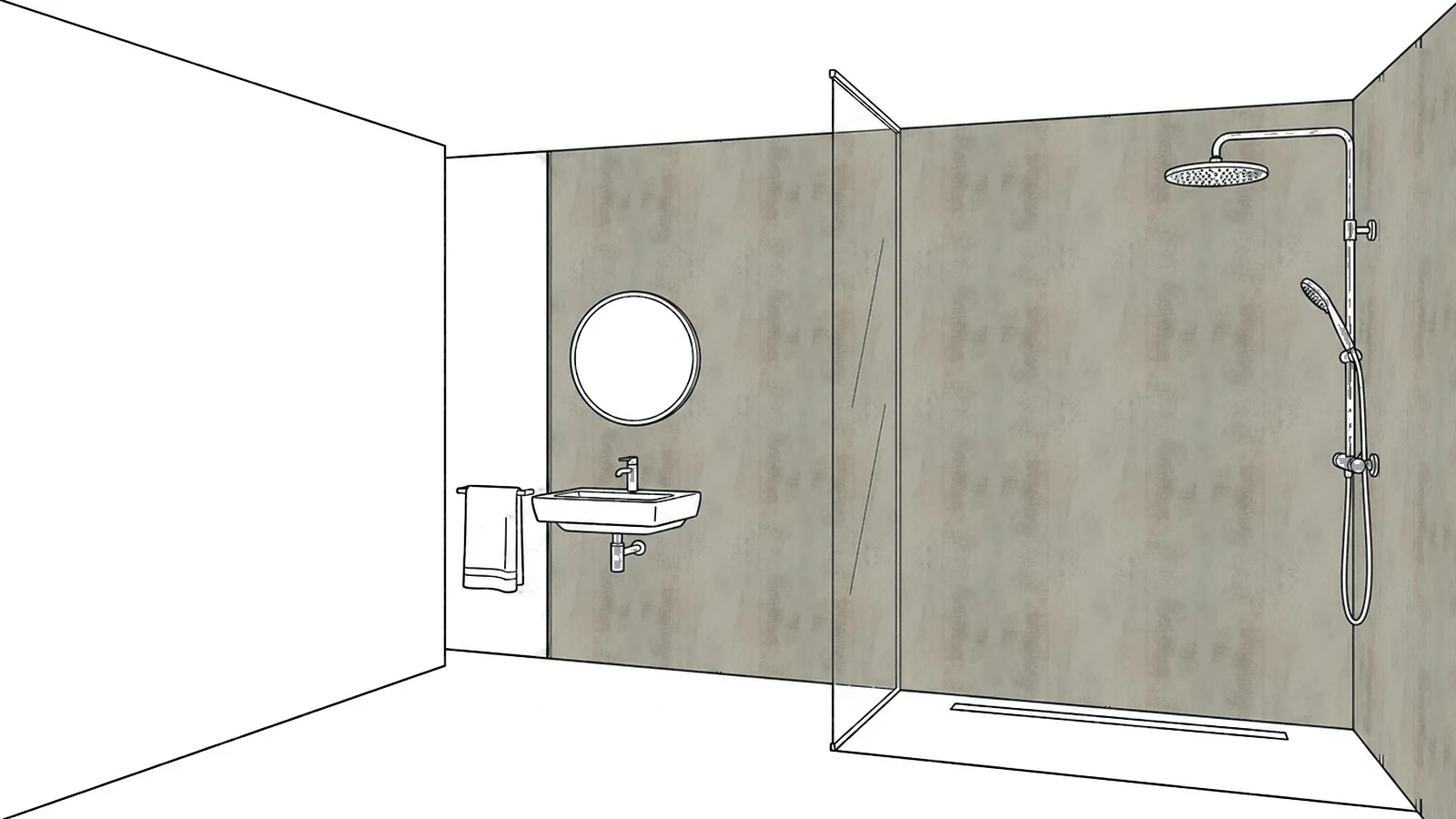

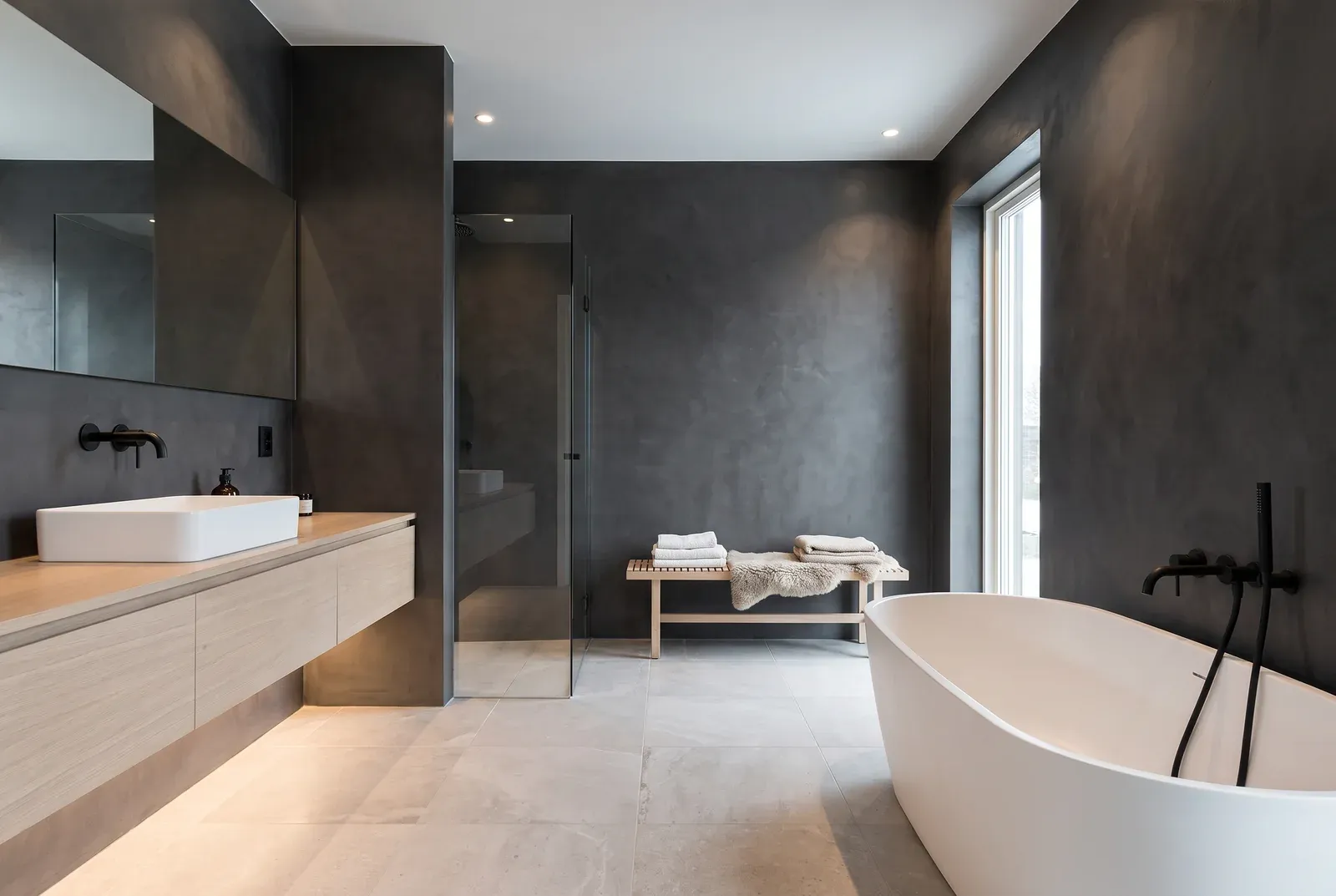

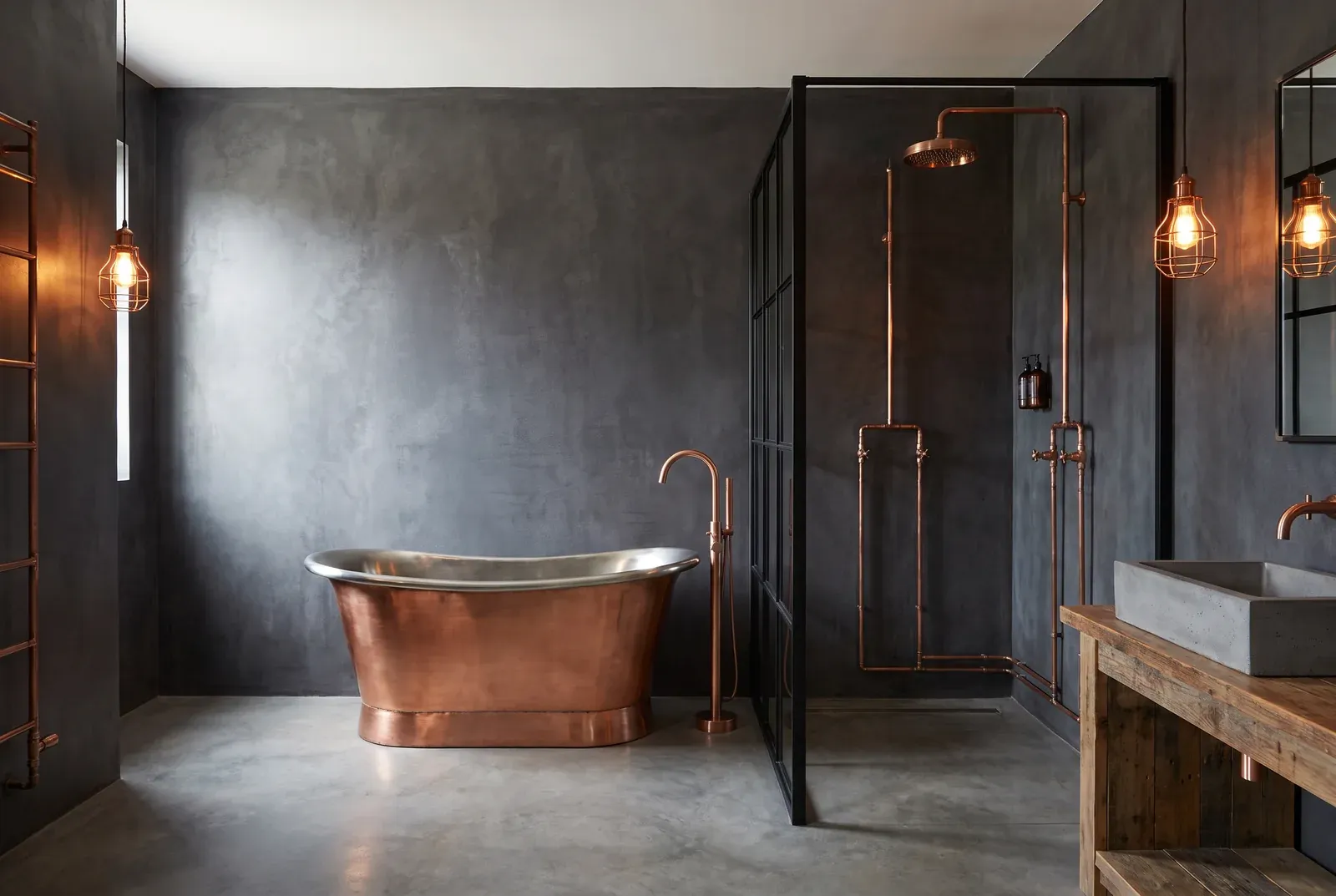

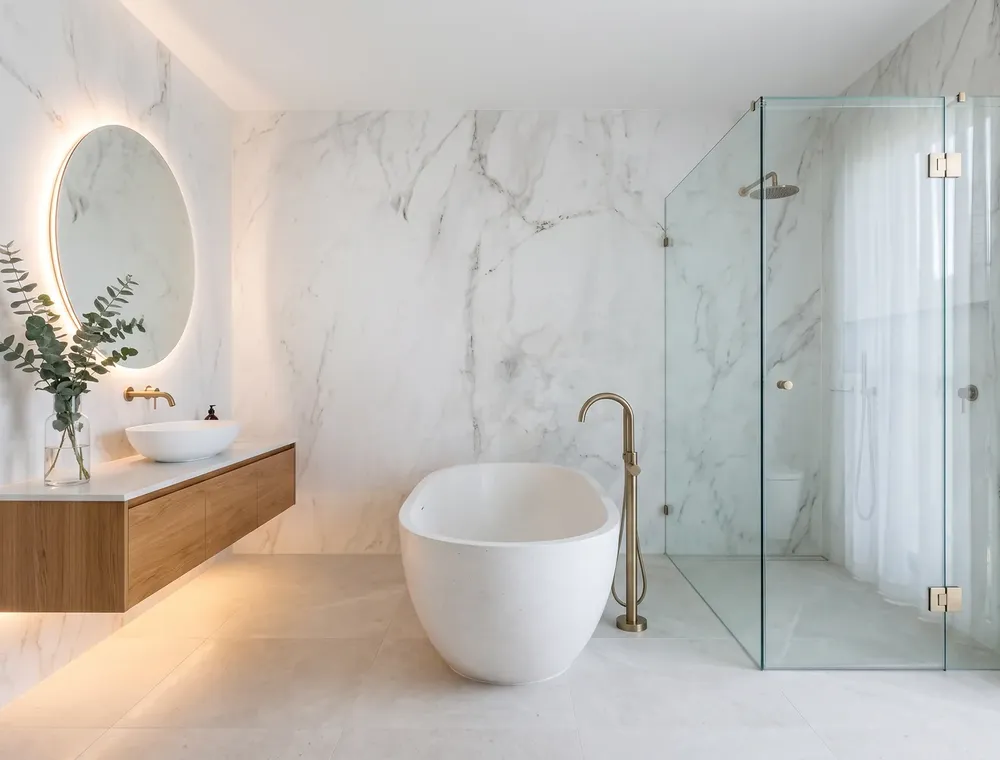

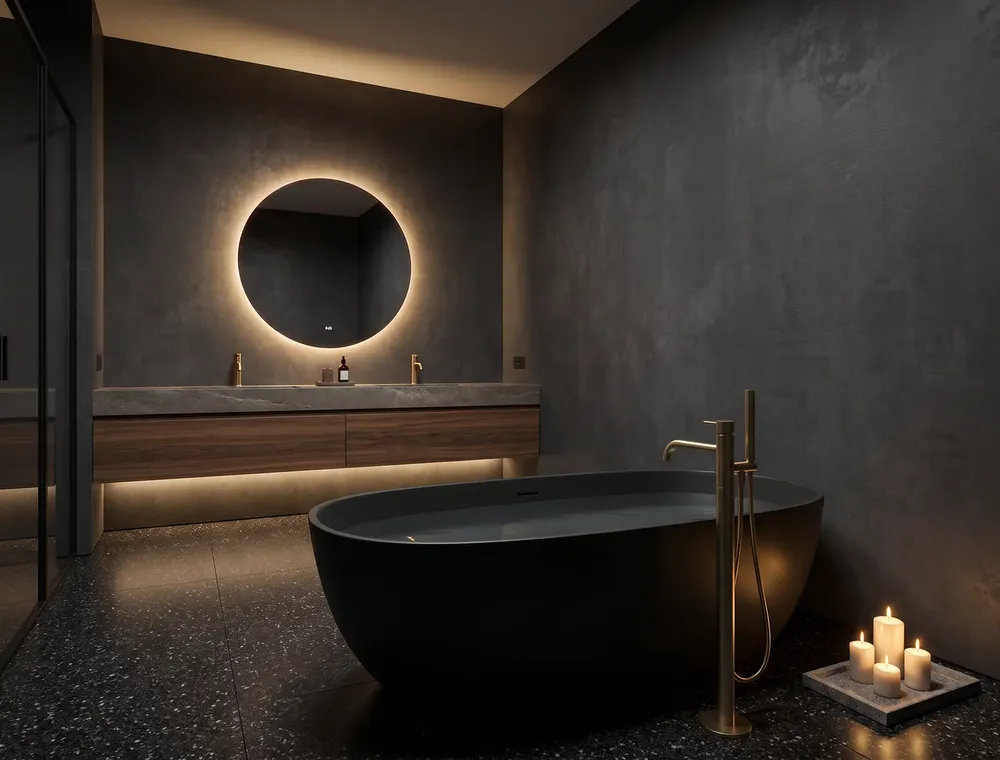

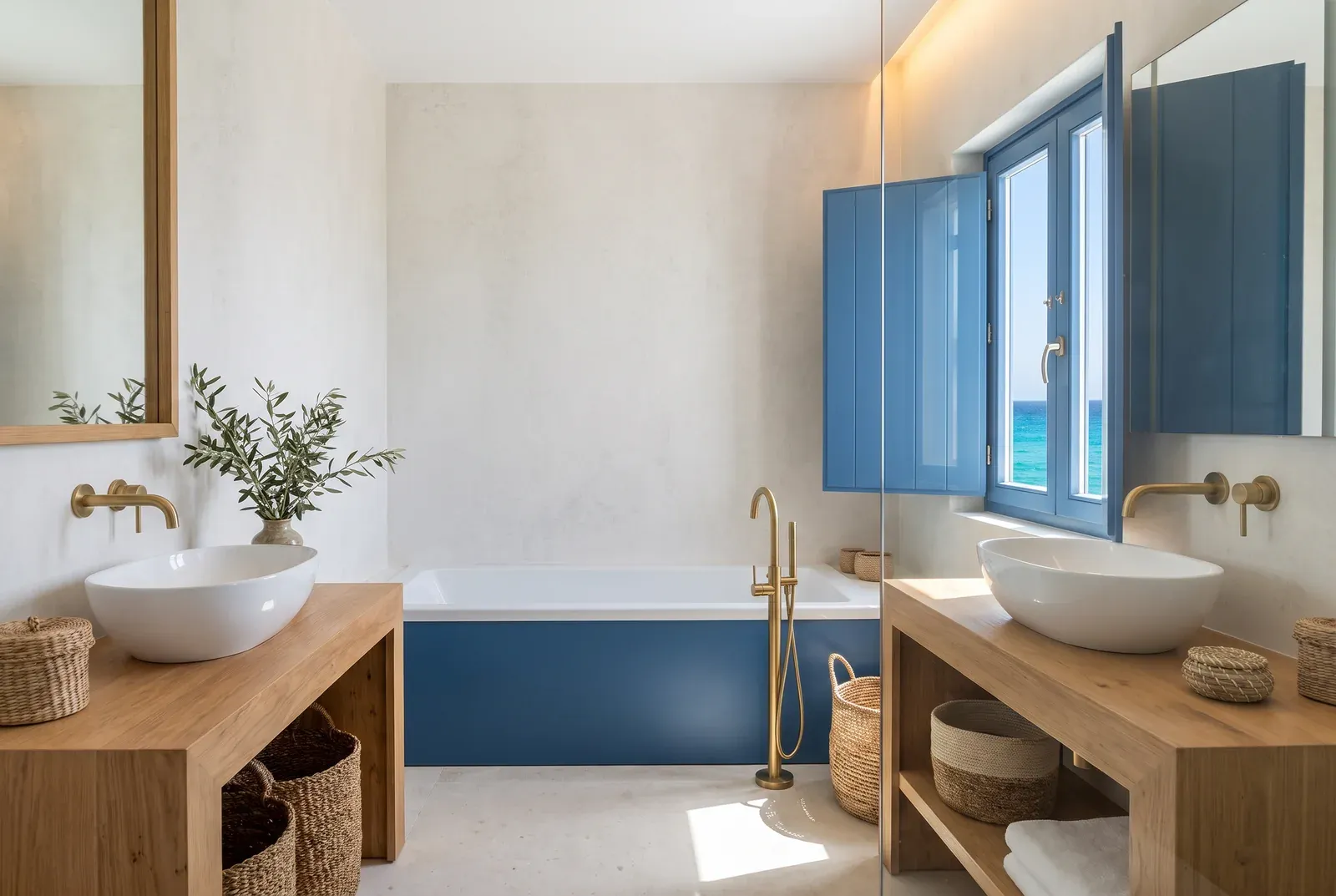

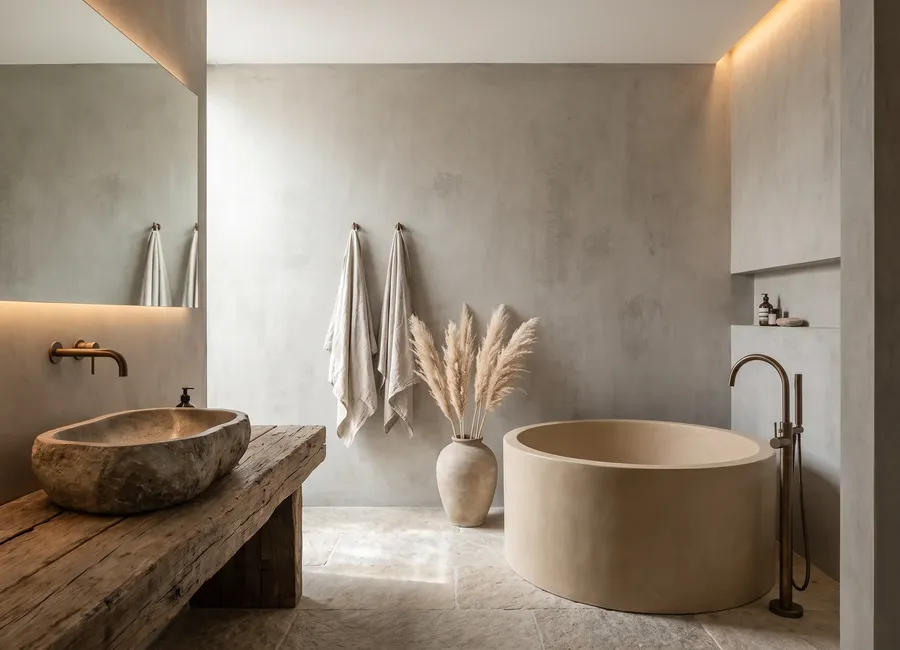

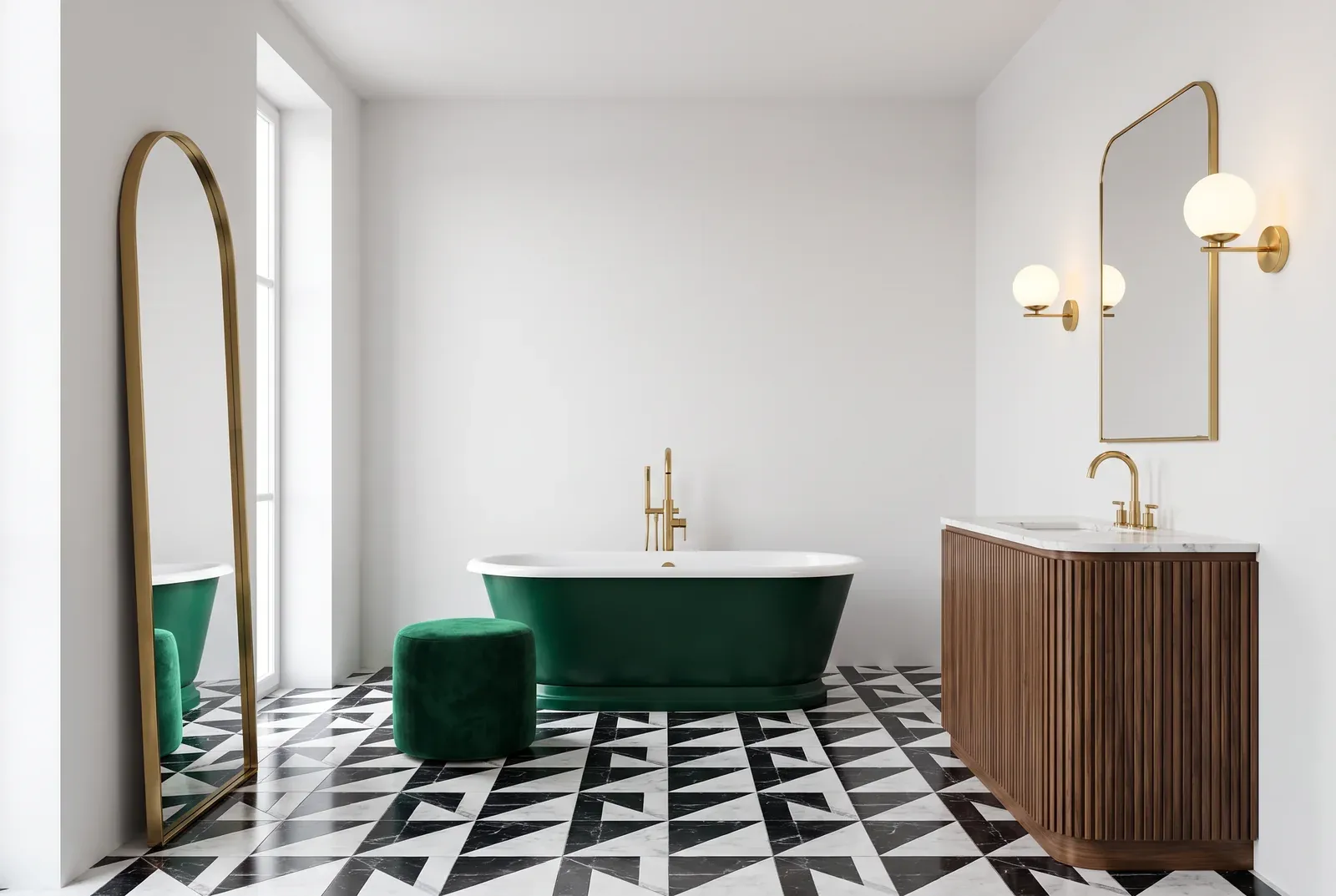

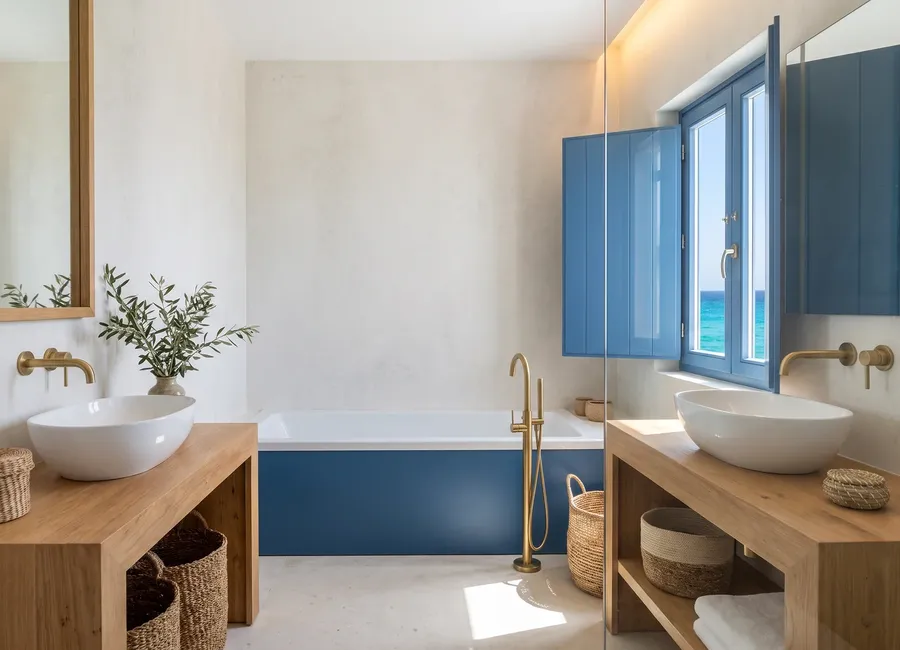

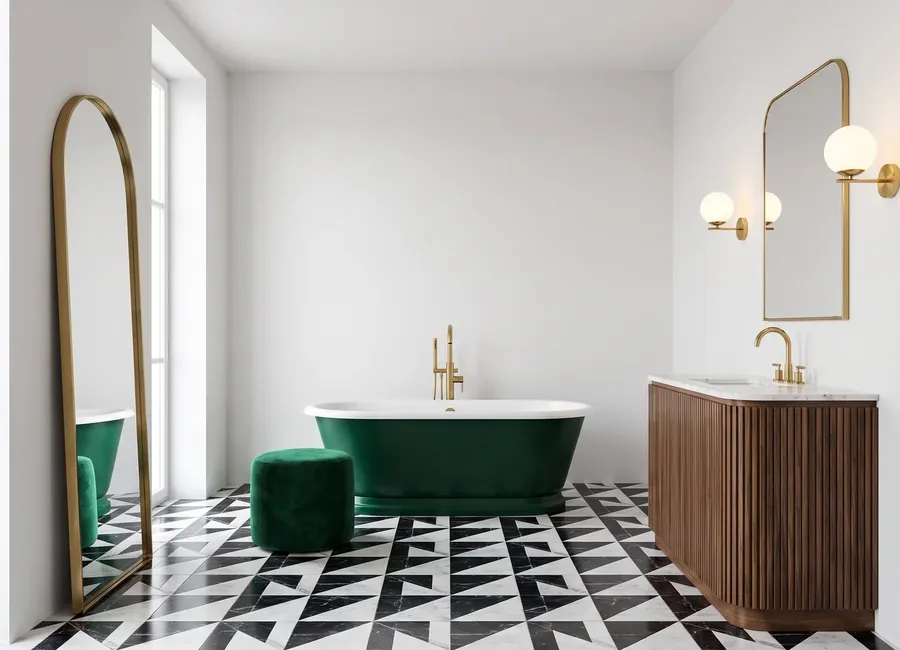

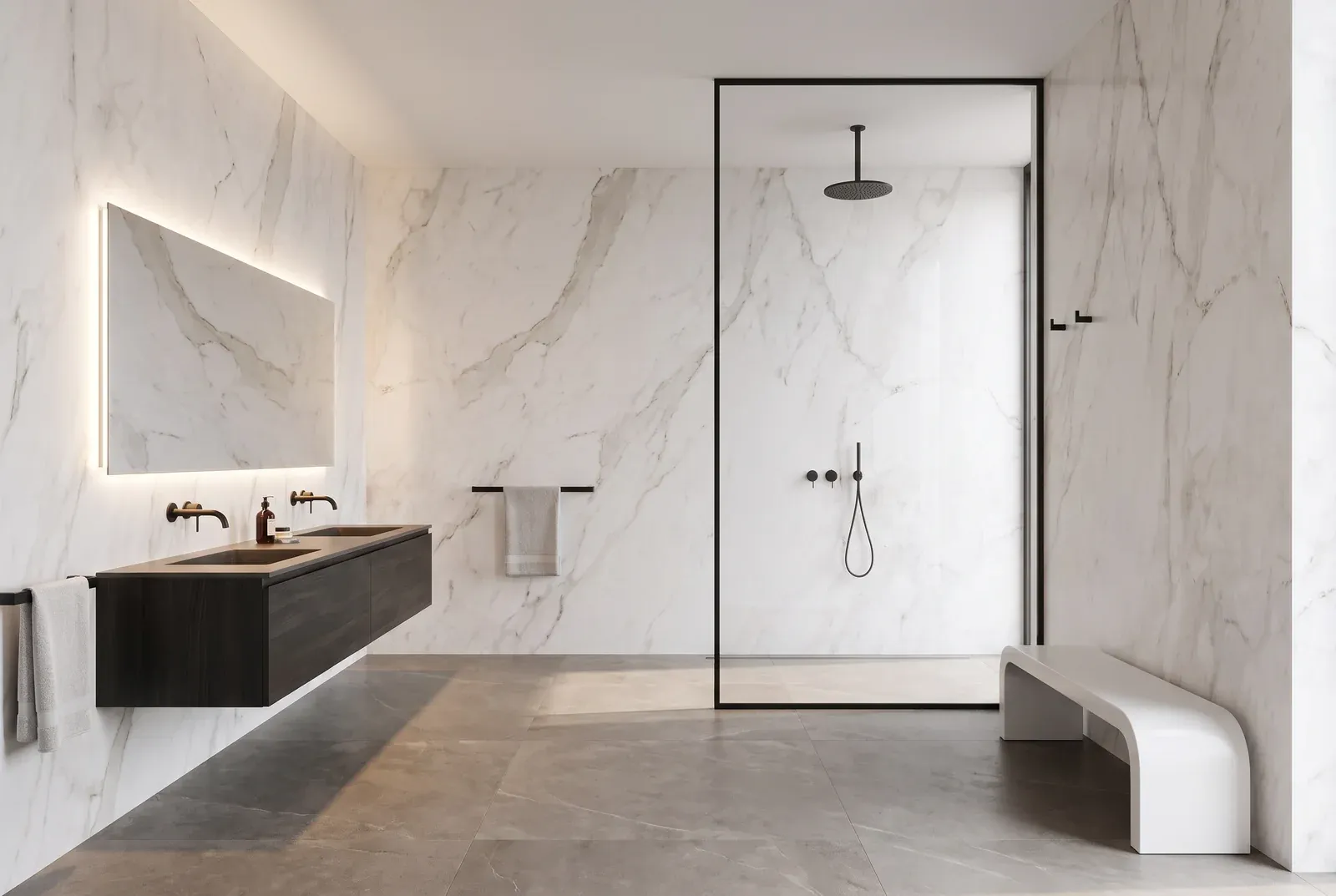

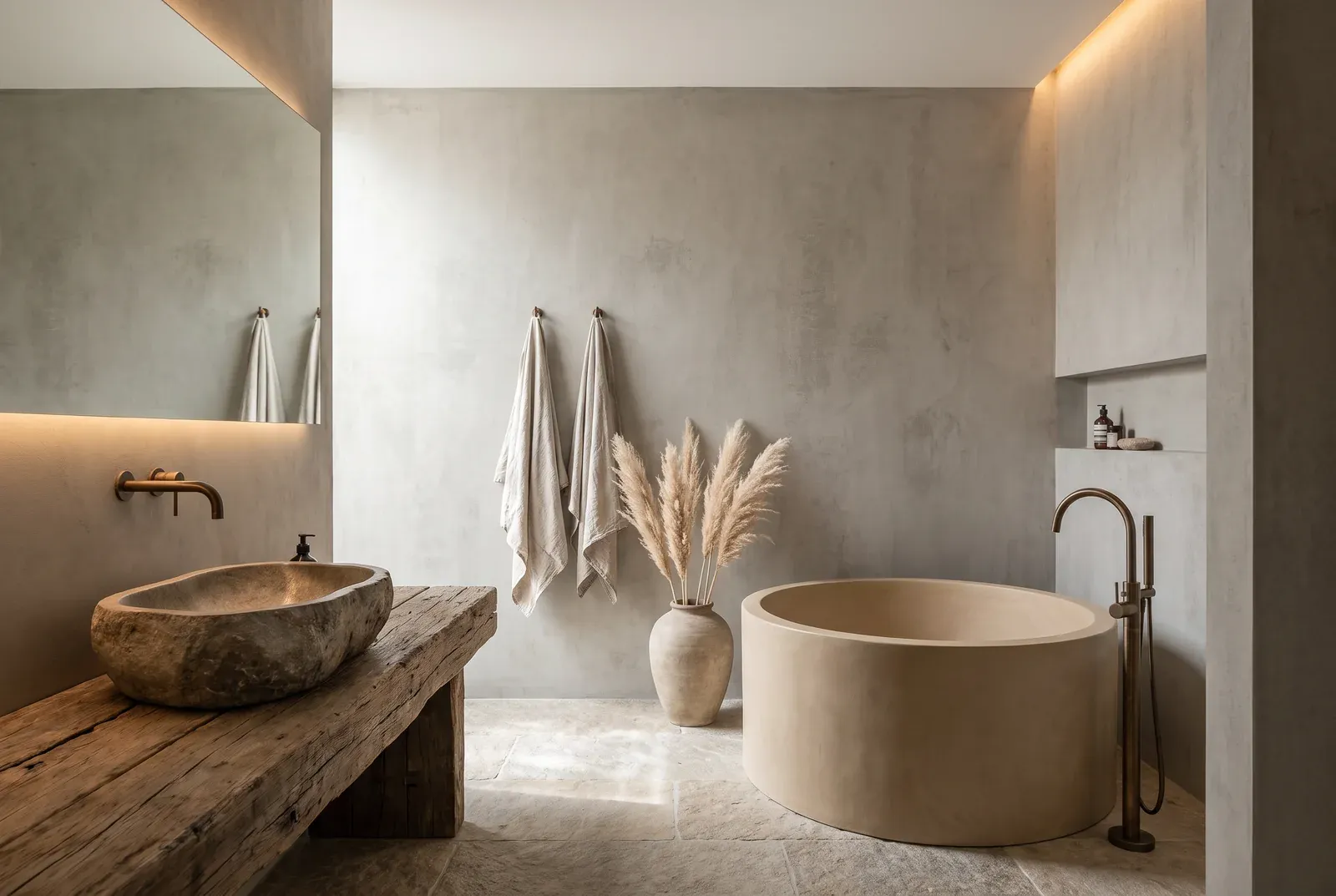

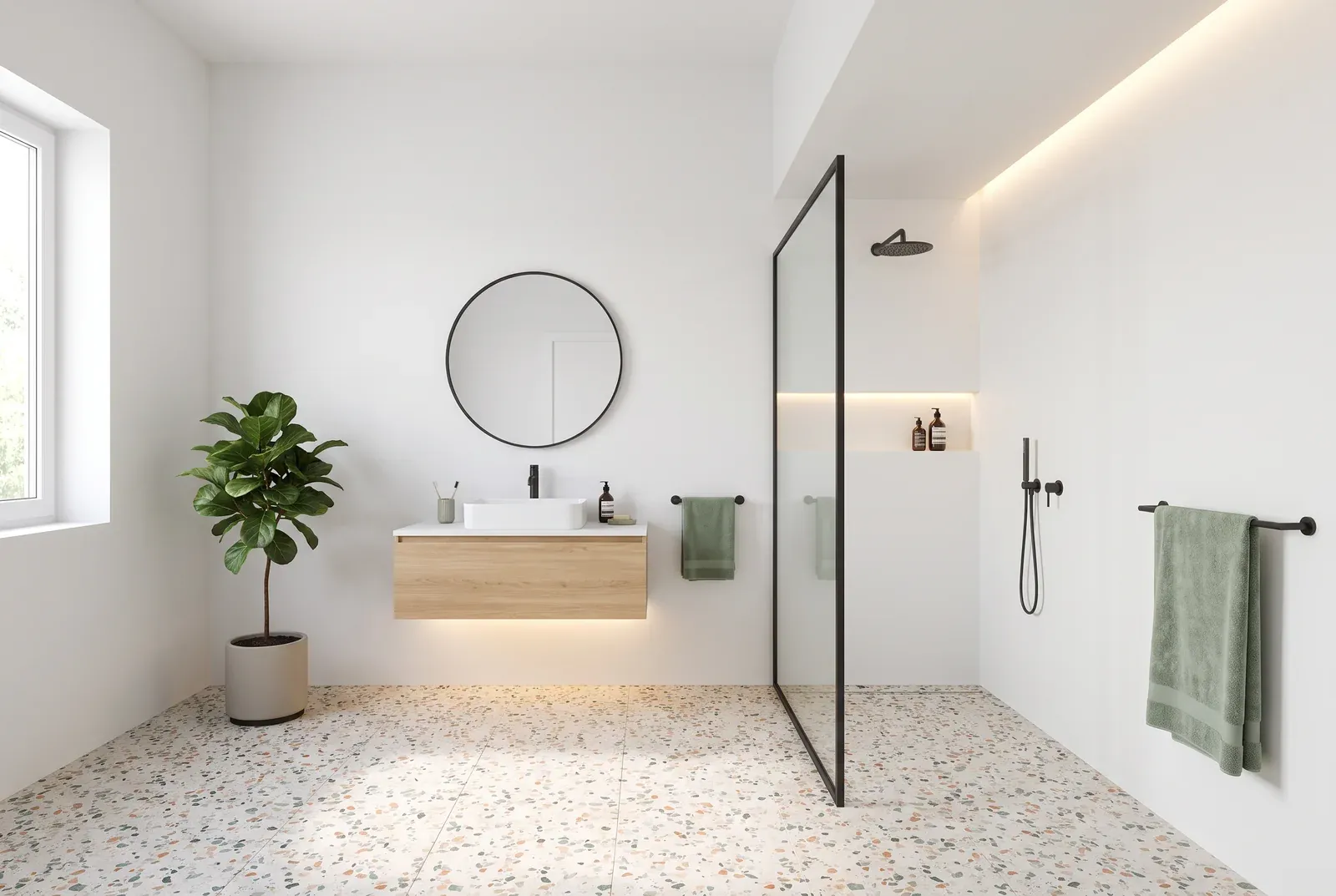

Bathroom schemes in our finishes
Downloads
The Bathroom Design product leaflet, available in 21 languages: specifications, colours and accessories.
Before you choose
Bathroom panels, frequently asked questions
How do bathroom panels differ from tiles?＋
A panel is 2800 mm high with 600 mm of covering width, so the wall is made up of a few elements instead of a few hundred tiles. There are no grout lines to clean and nothing that darkens over time. Click installation is dry and quick, with no tile adhesive and no grouting.
Are the panels waterproof?＋
The panel core is a waterproof HDF board, and the face is covered with a waterproof decorative veneer. That is why the panels are intended for bathrooms. We provide installation details for the shower zone together with the quote.
How are Bathroom Design panels installed?＋
The panels join with a click in the STRAMA CLICK system. The SP-BD-PS280 aluminium profile starts and ends the wall, while the SP-BD-CU280 profile finishes the corners. We will send installation instructions for your substrate together with the quote.
Where can they be used?＋
In new bathrooms and during refurbishments, including modular and timber-frame houses. They work well across whole bathroom walls, around the bath and in the basin area.
How do you clean bathroom panels?＋
A damp cloth and a mild detergent are all you need. With no grout there is nothing to scrub. Do not use abrasive products or strong solvents.
Can I see a finish in real life?＋
Yes. Tell us which finishes interest you and we will send samples. The colour on screen is only a guide, so it is best to confirm your final choice on a sample.
Are finishes available other than the five in the standard range?＋
Yes, on special order we offer over 100 designs. We produce to order, so a finish outside the standard range does not require stock to be held.
STRAMA PANELS
Planning a grout-free bathroom?
Give us the wall dimensions and your chosen finish. We will prepare a quote for the panels and profiles and send samples.
Bathroom visualiser
See your bathroom grout-free.
Upload a photo of your bathroom and pick a finish. In a few seconds you will see the walls in bathroom panels instead of tiles, while the floor, bath and fittings stay as they are.
- 1Create an accountYou confirm your email with one click, no password needed.
- 2Upload a photo of the bathroomBest with the whole room in frame, with the lights on.
- 3Choose a finishWhite, marble, concrete or graphite, always grout-free.
Open the bathroom visualiser →Free, sharing the daily limit with the other visualisers.
BeforeAfter: Marble C
For bathroom showrooms and installers
Selling or fitting bathrooms? Add our panels to your range.
Bathroom panels are one of the three STRAMA PANELS lines, alongside wall panels and facade panels. Partnership terms are agreed case by case.
